Pressure Swing Adsorption Hydrogen Separation Molecular Sieves

FOB Reference Price:Get Latest Price
$1.80 - $2.20 / Kilogram | 600 Kilogram/Kilograms 8x12 mesh, 1.6-2.5mm sphere hydrogen separation molecular sieve (Min. Order)
Shipping:
Support Sea freight
Samples:
Report Suspicious Activity
Overview
Quick Details
Classification:
Chemical Auxiliary Agent
Type:
Adsorbent
Adsorbent Variety:
Molecular Sieve
Place of Origin:
Jiangxi, China
Brand Name:
GOPHIN
Model Number:
PSA-5A
CAS No.:
11113-61-4
Purity:
98%
Other Names:
hydrogen separation molecular sieves
MF:
0.7 CaO . 0.3 Na2O . Al2O3 . 2 SiO2 . 4.5H2O
EINECS No.:
215-283-8
Usage:
Petroleum Additives, Pressure Swing Adsorption Hydrogen Purification
Product Name:
Pressure Swing Adsorption Hydrogen Separation Molecular Sieves
Appearance:
Light Brown Sphere
Sphere Size:
8x12 mesh 1.6-2.5mm
Bulk Density:
≥0.70g/ml
Static Water Absorption:
≥24%
CO Adsorption Capacity:
≥26ml/g
Crushing Strength:
≥25N/pc
Loss on Ignition:
<1.0%
Keywords:
hydrogen separation molecular sieves
Certification:
MSDS, Certificate of Inspection
Supply Ability
Supply Ability:
10000 Ton/Tons per Year Pressure Swing Adsorption Hydrogen Separation Molecular Sieves
Packaging & Delivery
Packaging Details
150kg/drum, 600kg/pallet, 12tons/20GP
Port
Qingdao, Shanghai
Lead Time :
7-10 days after receipt of payment
Video Description

Pressure Swing Adsorption Hydrogen Separation Molecular Sieves

Pressure Swing Adsorption Hydrogen Separation Molecular Sieves

Specification
 What is the details of our molecular sieve?
Gophin Binderless PSA-5A Molecular Sieve is an excellent adsorbent specially designed for hydrogen purification by PSA method.
Since the non-zeolite binder of common molecular sieve 5A is transferred to zeolite, binderless PSA-5A has special characteristics such as greater CO, N2 and CH4 adsorption capacity. Most of the time, binderless PSA-5A works with activated carbon in a pressure swing system (PSA). By PSA method, the hydrogen purity can reach 99.9999%. Until now, it is the most commonly used adsorbents in hydrogen purification with PSA method.



TypeMolecular Sieve PSA-5A
Size (mesh)8x12
Diameter (mm)1.6-2.5
ApplicationHydrogen Purification in PSA device
Static Water Absorption (%)≥24
N2 Adsorption Capacity (ml/g)≥10
CO Adsorption Capacity (ml/g)≥26
Average Crush Strength (N)≥25
Bulk Density (g/ml)≥0.7
Loss on Ignition (%)≤1.5



Package25kg/kraft paper bag25kg/carton150kg/steel drum
1PalletQuantity750kg / 1,650lbs750kg / 1,650lbs600kg / 1,320lbs
Delivery time5-7 days5-7 days5-7 days
20GPQuantity15,000kg / 33,000lbs15,000kg / 33,000lbs12,000kg / 26,400lbs
Delivery time10-15 days10-15 days10-15 days
Exact ETD and ETA please confirm with our staff before place order. We accept customize package.



 Other molecular sieves:

Size: 0.4-0.8mm, 0.8-1.3mm, 1.3-1.7mm, 1.6-2.5mm

O2 Purity: 93-95%

N2 Adsorption Capacity: ≥22ml/g

N2, O2 Separation Ratio: ≥6.2

Loss on Ignition: ≤0.50

Bulk Density: 0.61-0.65g/ml

Size: 1.6-2.5mm

N2 Adsorption Capacity: ≥10ml/g

CO2 Adsorption Capacity: ≥26ml/g

Loss on Ignition: ≤1.50

Bulk Density: ≥0.70g/ml



Carbon Molecular Sieve                                    Application: PSA Nitrogen (N2) Generator    Type: CMS-180 200 220 240 260

Size: 1.0-1.1mm, 1.3-1.5mm
N2 Purity: 98-99.99%
N2 Output: 70-380m3/h.t
Pressure: 0.6-1.0Mpa
Dust Level: 100PPM Max

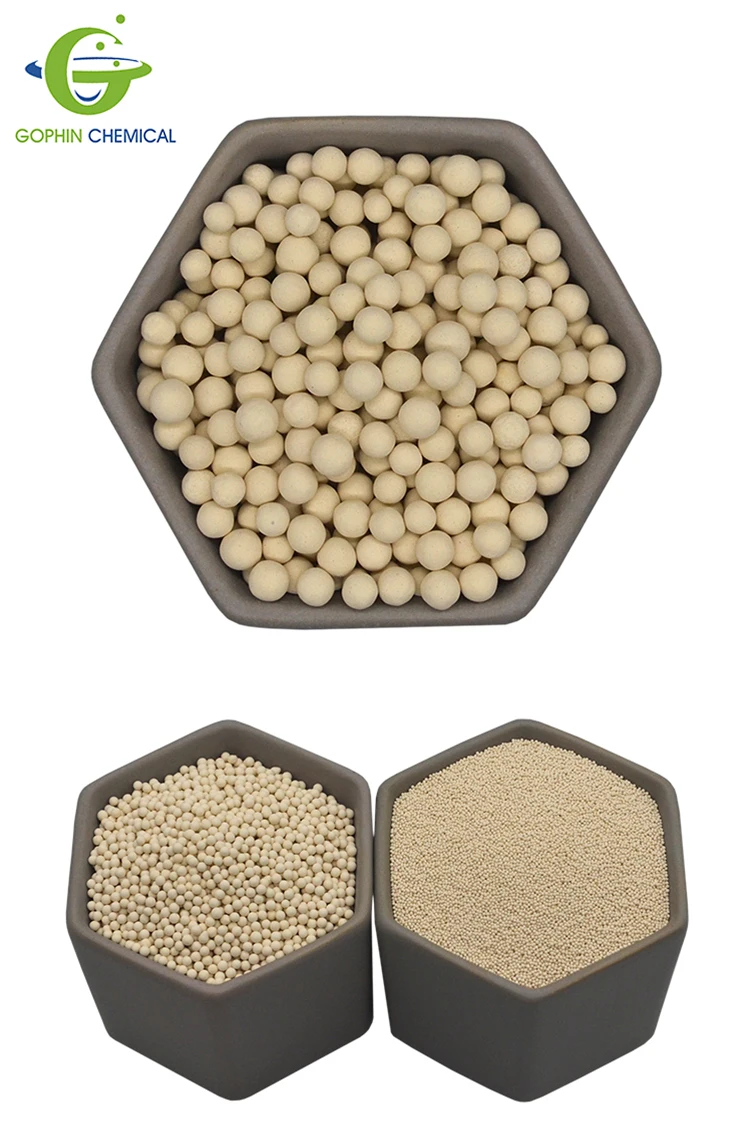

Product picture
